TECHNICAL SPECIFICATIONS

Serial MODELS OF MACHINES Sr. No: 1 Sr. No: 2 Sr. No: 3 Sr. No: 4 Sr. No: 5 Sr. No: 6
1. Length of Bed 8 - 1/2' 8 - 1/2' 10' 12' 22' 12'
2. Height of Centre 14- 1/2" 16" 18" 24" 28" 30"
3. Width of Bed 16" 20" 24" 30" 30" 38"
4. Swing over Bed 29" 32" 36" 48" 56" 60"
5. Swing Over Saddle 20" 21" 25" 37" 45" 48"
6. Swing in Gap 42" 46" 53" 66" 74" 82"
7. Width of Gap in front of Face Plate 10" 10" 10" 20" 20" 20"
8. Admit between centers 50" 36" 52" 66" 162" 40"
9. Spindle Bore 3-1/8" 4-1/4" 4-1/4" 4-3/4" 4-3/4" 5"
10. Spindle Speeds 6 6 6 8 8 8
11. Size of Morse Taper 3MT 4MT 4MT 4MT 5MT 6MT
12. Pitch of Change Wheel 8DP 7DP 7DP 6DP 6DP 6DP
13. Speed of Counter Shaft in R.P.M 240 200 200 160 160 160
14. Dia of Lead Screw 2" 2-3/8" 2-3/8" 2- 1/2" 2- 1/2" 2-5/8"
15. Pitch of Lead Screw 2TPI 2TPI 2TPI 2TPI 2TPI 2TPI
16. Power Required B.H.P. 3HP 5HP 7-1/2 HP 10HP 15HP 25HP

NOTE: The above Machine can be supplied in different bed lengths with different admit between centers as given below. Other technical specifications, will remain same as given above. UMTC Lathes are available in Bridge Type as well as planner models.

Serial No. 1 Serial No. 2 Serial No. 3 Serial No. 4 Serial No. 5 Serial No. 6
Bed Length Admit Bed Length Admit Bed Length Admit Bed Length Admit Bed Length Admit Bed Length Admit
10' 67" 10' 54" 12' 76" 14' 96" 24' 180" 20' 136"
12' 90" 12' 78" 14' 100" 16' 120" 26 - 1/2' 210" 25' 196"
14' 114" 14' 102" 16' 124" 18' 144" 28' 228" 30' 256"
16' 138" 16' 126" 18' 148" 20' 168" 30' 252" 36' 328"
    18' 150" 20' 172" 22' 192"     42' 400"
    20' 174" 22' 196" 24' 216"
        24' 220"

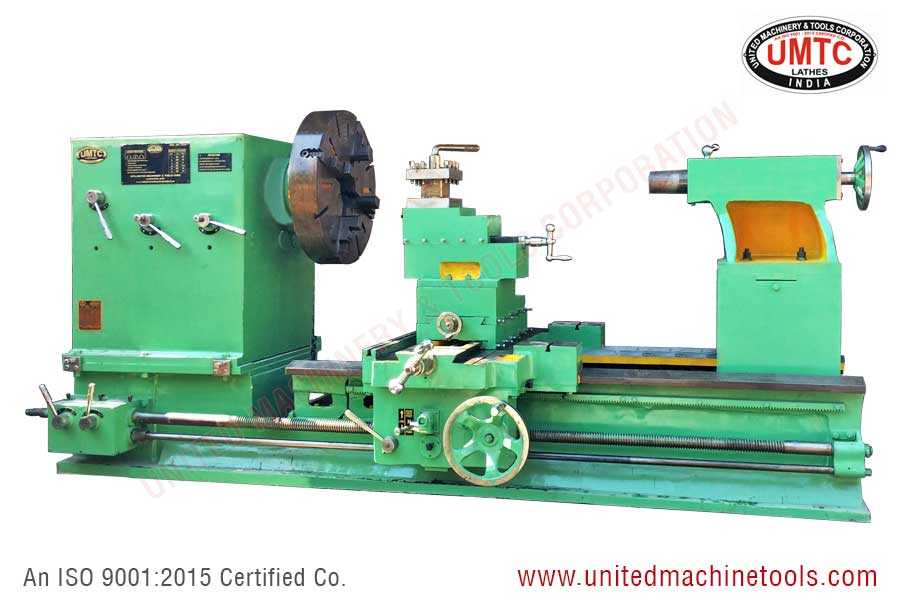

INTRODUCTION

The UMTC S.S & S.C. Lathes are renowned throughout the country and are designed to give maximum efficiency and reliable performance under the most severe conditions of service with minimum maintenance cost. UMTC Lathe machines are famous for precision jobs, accuracy and trouble free service. UMTC Lathe machines are an example of skilful workmanship. Its efficiency can be relied upon and can considered to be India’s modern machine for quality precision jobs. UMTC Lathe machines are available in different Bed Length ranging from 6-1/2’ to 42’ length. Different spindle Hollows are also available from 2-1/8” to 11”. UMTC is proud to be serving the all types of engineering industry from the last couple of years.

DESIGN & WORKMANSHIP

UMTC lathe machines have been designed to cater need of sustained accuracy and superb finishing. UMTC lathes are guaranteed for their original design, and are tested to the graded limits with specially imported precision tools. In the manufacture of high class precision lathes has made UMTC equipment know throughout India and abroad for quality and reliability. The UMTC range includes center lathes on various lengths of bed and specially designed for heavy duty boring, facing and turning jobs in the high precision accuracy, rigidity and quality.

STANDARD ACCESSORIES

Catch plate one, Dead Centres two, Centres adopter one, stationery steady one, Revolving steady one, one set of 23 gears, Threading dial one, Motor bracket and Motor Pulley.

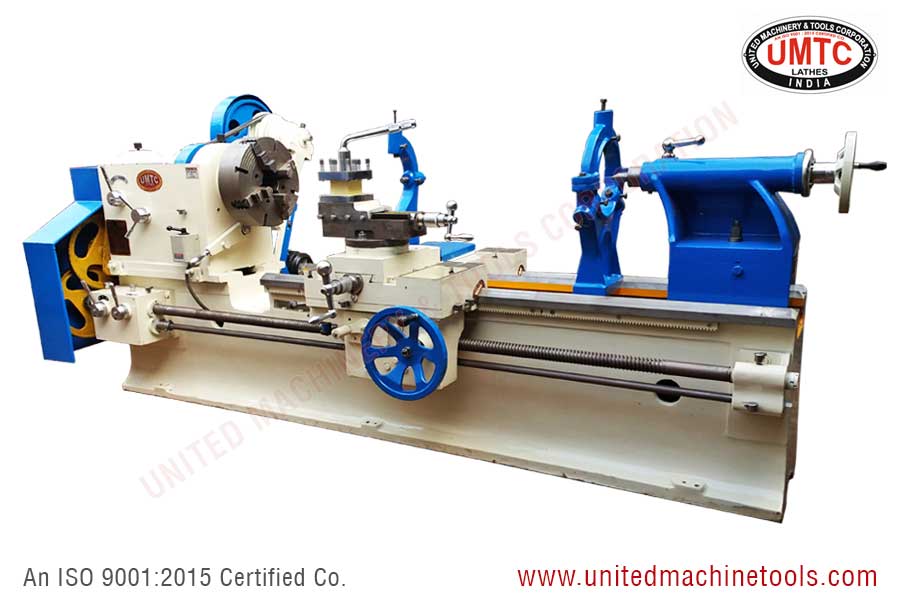

MACHINE TECHNICAL DESCRIPTIONS

The UMTC Extra Heavy Duty Lathes are renowned throughout the World to give maximum efficiency and reliable performance under the most severe conditions of service with minimum maintenance cost. UMTC Lathes are famous for precision jobs, accuracy and trouble free performance.

UMTC Lathes have been designed to cater need of sustained accuracy and superb finishing.

BED: The bed being the foundation of the lathes is carefully designed and is of high grade cast iron. It has cross-ribs to support its walls and three inverted 'VEES' assembled with removable gap for large swing.

HEAD STOCK: The main spindle is of alloy steels with ground finish to give accurate results. The main spindle runs in bush or taper Roller Bearings. We manufacture lathe machines with Geared Head model also.

SADDLE: The V ways running on the bed and the slides are most accurately hand scrapped and aligned accurately with bed and the headstock. The saddle is fitted with 'Hand' and 'Automatic Travers' along the bed with steel rack and pinion. It is assembled with cross and upper slide graduated to give desired taper turning.

TOOL-POST: The tool-post is made out of one piece steel block and can hold four different tools at a time and can be swiveled to any desired angle.

APRON: The apron gives movement to the saddle for screw cutting sliding and surfacing by means of enclosed gears and half nut. All gears are of steel with Gun Metal Bushes.

TAILSTOCK:
The tailstock is designed to give maximum strength. It has long bearing within the barrel and ensures true alignment. We also provide Rotary Type Tailstock for bigger Lathe Machines having provision to fix the Dog Chuck.

THREE SPEED GEAR BOX: The three speed gear box is provided with the lathe to obtain coarse, medium and fine cutting ranges, both longitudinal and cross on the feed Shaft. We also provide Full Norton Gear Box for Geared Head Models.

STANDARD ACCESSORIES: Supplied with the machine:- one-Catch Plate two Dead-Centre one-Centre adopter one-Steady Rest one-Follow Rest one- set of 23 gears ( 7 gears for geared head model )-Threading dial one- Motor pulley and Motor Bracket.

Note: In accordance with our continues improvements we reserve the right to change the design and specifications without any notice.
